Xhorse Condor XC-MINI cut Nissan NSN14 key

Here is the instruction on cutting Nissan NSN14 key with original Xhorse Condor XC-MINI automotive key cutting machine.

There are 3 ways to make keys with Condor MINI key cutting machine. Here adapts the 3^rd way: “Cut by Bitting” with an existing the original key.

Power on the machine

Select “Cut by Bitting”

Select the Blank key “NSN14”, Press “Confirm”

Select key type and confirm

Click on “Key Decode” button. The found bitting and Clamp M1 to be used will display on the screen, Click on “Confirm”

Verify bitting and modify bitting, click “Cut”

Start key cutting

Change the key

Put a new Blank Key in the proper position of the clamp.

Press “Direct processing”

Cut key in progress

Take out the new key

Compare original key and new key. The left one is the new key, it is a little different in size, it works.

Test the new key.

Source:

http://www.uobdii.com/wholesale/ikeycutter-condor-xc-mini.html

W204 all keys lost, Xhorse VVDI MB BGA tool make key procedure

Someone is wondering with what is the procedure that we need to do when we have all keys lost for a w204 and we got a new ezs from dealer or other?

How to adapt it to the car and also how to edit the pass because it's at virgin state (factory state)?

Device will automatically generate keys and also make a password ?

Currently version W204 all key lost steps: (user should buy a new EIS first)

1. Read EIS data via obd,then Save EIS data

2. adapt ESL:Read ESL data->Get Erase Password->Renew ESL

3. Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data

4. Personalize W204 ESL

5. Load EIS data(with Key Password)->Prepare Key File

6. Input new Key to device IR reader->Load Key file->write

7. Insert new Key to EIS->EIS will learn the new key->key learn success

Source:

http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

Original Xhorse VVDI Benz BGA tool Feedback - do all key lost on w212.

 User 3abas27 feedback:

i test password from 212 new model super

good tool need pay 2 tokens

need 10 min all ok

User didi_du_93000 feedback:

sure it can do all key lost on w212 as the same as Mehaco /nec pro51/ mercedesinstrument, but cheaper.

More questions and answer on “do all key lost”

Question: So what about w204 w207 w246, can BGA tool do all key lost?

Answer: W204 and w212 eis are different. Yea on fbs4 nothing can be made. But 2010 w212 is fbs3.. so all keys lost sure is posible on this model..W204 facelift has fbs4 and it comes without esl/elv so another way to distinguish it.

Parts of 2014 & Mostly model of 2015 (and after 2015)is FBS4,currently cannot support FBS4 type.

User can Auto detect the EIS.if can detect the type but can't read the EIS data,should be FBS4.

Question: Does it support erase keyless-go rom08 or so?

Answer: yes it work already done 20 of them i had in stock

Question: How do you actually connect them? The socket diagram is a bit confusing. My adapter 1 is different than in pic.

Answer: i have the old adapter

i believe the new adapter socket needs the new firmware which will be released soon

are u able to read V51 and V57 by ur socket if so , then u can , u just need to twist the socket , so if u read v51 , twist the socket and read the V08

source:

http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

Xhorse condor xc mini updated online error solution

Question:

Xhorse condor xc mini key cutting machineI just updated online, now can’t work m2 clamp,

I think instead of upgrade I downgrade the machine.

When I try to adjust clamp stop because now the picture of the clamp different to the clamp I have look at the pictures I attached.

I select version 2.0.6 to update.

Working solution:

Download Condor XC-Mini update tool and follow the instruction to update.

Download Condor XC-Mini update tool at:

http://www.chinaautodiag.com/download/sl273-condor-xc-mini-update.zip

Update instruction:

1. Connect Mini machine to your PC, turn on the machine.

2. After Install “driver file”, open the update software.

3. Select preferred language by yourself, and then click on “Update”.

4.Select update version, click on “Update Online “wait until it displays “Update Success”, wait for a while(30seconds). Restart machine.

Source:
 http://www.uobdii.com/wholesale/ikeycutter-condor-xc-mini.html

VVDI 2 Original Full Package Customer Received

Thanks Betto Zavaleta in Saudi Arabia for the review on VVDI 2 full package.
Bought one of vvdi 2 full kits + VVDI 2 remote programmer after doing a lot of research from many sellers in China. The staff from obd365 always responded quickly, answering all questions I had. Shipping was very quick although DHL tracking didn’t work until package had arrived (approx. 4 days).
Every item all appears to be in a good condition, each packed well in a paper box, no damage or scratch at all, although i though a plastic one would be better. The latest vvdi2 software 1.1.0 was in the disk (free download link i saw in the web also), then I installed the vvdi ii software and driver according to the user manual, common installation method, not difficult for me. Everything seems to work OK, which is exactly as stated.

Lack of wireless connection to the vvdi 2 seems to be less convenient, but on cable it has worked consistently well anyway.

For people considering buying a kit like this for BMW & VAG group cars, the only advice I can give is that to buy the full package to avoid inconvenience of authorization (5th AUDI, BMW obd & CAS4+ authorization need extra pay if not full package; but it seems that they can open this function for those with Condor key machine.)  It’s a great toolkit to have for diagnostics, key programming, IMMO etc. though.

Overall – I can highly recommend buying vvdi 2 or others from this vendor since everything was as advertised, plus they have fast response via emails if we users have issues or questions when using their products.

How to use Xhorse VVDI MB BGA tool to add MB BGA key How to add MB BGA key with Xhorse VVDI MB BGA tool

This post shows how to use Xhorse VVDI MB BGA tool to add MB BGA key.

1. Open VVDI MB BGA tool software.

2. Choose type. Procedure: click "EIS Tools", then "Read EIS data", then choose chassis number "W166, 197,212,218,246" and Mode as "OBD".

3. Calculate Password. Click "Password Calculation", then choose chassis number "W166, 197,212,218,246" and OBD mode, then click

"Data Acquisition" and you will get attention to insert "Working key" to "EIS", wait about 14 seconds, then get attention to insert "working key" to "Device IR reader", then insert "Working key" to "EIS" and insert "working key" to "Device IR reader", then wait 4 minutes, then insert "Working key" to "EIS" wait and insert "working key" to "Device IR reader".

Save the data, then acquisition finished, upload data with "Upload data" for password.

5. Press "Query result" to get result. It will cost about 1 minute to calculate password, click "Copy" to get the key password copy to clipboard.

6. Choose "EIS Tools", then "Save EIS data", then click "Paste" and the key password display shown as follows. Click "Save EIS data" and save again.

7. Prepare Key File:

1) Load EIS file with password

2) Select key position for key file, select key file format. Press button "Prepare Key File".

8. Read write key.

1) Click "Identification key", you see this is new key.

2)Click "Load key file", open "key6_F7CCD165_used_015"

3)  Click "Write" till you see writting success.

4) Then click "Identification key" to identify key information e.g. Key number is 8.

5) Test if key number 8 is working. Insert key into the car ignition.

Okay, add new MB key success.

Source:

http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

Original VVDI 2 V1.1.2 New Info

VVDI2 latest software version V1.1.2 update

*** 2016-01-29
*** Require firmware V2.1.2
**********************
===== Note =====
Xhorse will continue provide more useful and more conventient tool in 2016!

===== VAG V1.1.2 =====
1. Fixbug for prepare dealer key in audi RB4 crypto type
2. Fixbug for change KM in A6 (CAN protocol)
3. Immprove autodetect 4th immobilizer, support more cars
4. Bugfix



===== BMW V1.1.2 =====
1. Fixbug for change KM in CAS2
2. Fixbug for read key info from CAS2
3. Bugfix

===== Porsche V1.0.4 =====
1. Bugfix

===== Transponder Programmer V1.1.2 =====
1. Other Key Tool: make dealer key with 7 bytes CS / Find 7th byte CS : add no manufacture type
2. Immobilizer Data Tool add the following car support:
Subaru XV 2012
Sabura Forester 1998
Volvo XC70 2008
Volvo V70 2008
Dodge Ram 2008 uPD70F
Dodge Charger 2008 uPD70F
Dodge Sprinter 2006
Jeep Grand Cherokee 2008 uPD70F
Jeep Laredo 2008 uPD70
Saic MG3
Kia Cee'd 2012 STM8
Kia Soul 2008
Chevrolet Silverado 2011
Chevrolet Camaro 2015
Chevrolet Aveo 2012
Chevrolet Captiva 2011
Chevrolet Matiz 2006
Chevrolet Camaro 2015
Nissan Teana 2012
Mitsubishi Montero 2008
Mitsubishi Montero 2000
Mitsubishi Space Wagon 1999
Mitsubishi Pajero 2000
Mitsubishi Pajero Sport 2000
Mitsubishi Fuso Canter 2009
Mitsubishi Mirage 2010
Tata Safari 1999
Iveco Stralis 2008
Isuzu KB250D
Toyota smart systems certification ECU
Toyota Previa Immobox 2003
Toyota Yaris 2004
Mazda Tribute 2008
Kawasaki Denso 21175
Kawasaki Denso 21175 0811
VAZ Priora 2013
Piaggio Vespa LX125
Fiat Ducato 2012
Fiat Burstner Viseo 2011
Peugeot Boxer 2012
Pergeot Manager 2013
Renault Latitude 2010
Renault Safrane 2010
Renault Samsung SM5 2010
VW Golf 5 Viesteon 2008
VW Beetle 2008
Ford focus 2012
Ford Escapte 2012

How VVDI PROG work on BMW CAS2 CAS 3 CAS4 EWS4

This is the instruction on VVDI prog wiring connection to BMW CAS2, CAS 3, CAS4, EWS4 and adapters PCF79XXX.

vvdi programmer wiring diagram included:

CAS2-V1 2K79X/0L01Y

CAS2-V2 2K79X/0L01Y

CAS3 0L15Y/0M23S

CAS3+ 0L15Y/0M23S

CAS4 1L15Y

CAS4 5M48H

BMW EWS4.X xL86D/0M89C

VVDI PROG Programmer V4.3.0 Free Download

Original VVDI PROG Programmer V4.3.0  is released on Jan. 19th, 2016. All tips of 4.3.0 vvdi prog here!! come to get it
Free download vvdi pro 4.3.0

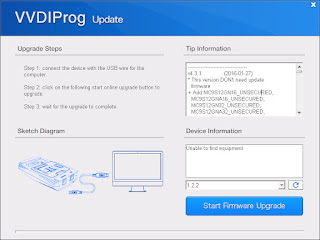

How to update Xhorse VVDI-PROG super programmer:
1) Connect the device with the USB wire for the computer
2) Click on the following start online upgrade button to upgrade
3) Waiting for the upgrade to complete



what's new in vvdi prog v4.3.0 
* This version DON't need update firmware
+ Add MC9S12XHZ256_UNSECURED,
  MC9S12XHZ384_UNSECURED,
  MC9S12XHZ512_UNSECURED,
  MC9S12XHZ256_SECURED,
  MC9S12XHZ384_SECURED,
  MC9S12XHZ512_SECURED options in <4-IMMOBILIZER>-><MOTOROLA> Mask:(0M80F,1M80F)
+ Add [V850ES/Sx3]series:
D70F3333,  D70F3334,  D70F3335,  D70F3336, D70F3340,  D70F3341,  D70F3342,  D70F3343,  D70F3350,  D70F3351,  D70F3352,  D70F3353,  D70F3344,  D70F3345,  D70F3346,  D70F3347,  D70F3348,  D70F3354,  D70F3355,  D70F3356,  D70F3357, D70F3358,   D70F3364,  D70F3365,  D70F3366,  D70F3367,  D70F3368 options
  [V850ES/Fx3]series:
D70F3370A,  D70F3371,  D70F3372,  D70F3373, D70F3374,    D70F3375,    D70F3376A,  D70F3377A,  D70F3378,  D70F3379,  D70F3380,  D70F3381,  D70F3382,  D70F3383,  D70F3384,  D70F3385 options
  [V850ES/Hx2]series:
D70F3700,  D70F3701,  D70F3702,  D70F3703,  D70F3704,  D70F3706,  D70F3707,  D70F3709,  D70F3710,  D70F3711,  D70F3712 options
  [V850E2/Fx4-G]series:
  D70F4177,  D70F4178,  D70F4179,  D70F4180 options in <2-MCU>-><RENESAS>
+ Add EIZ-W220(ST12)   in <4-IMMOBILIZER>-><BENZ>
+ Add ORIGINAL-315M-IN-CIRCUIT,
  ORIGINAL-315M-CHIP,
  ORIGINAL-868M-IN-CIRCUIT,
  ORIGINAL-868M-CHIP options in <6-REMOTE>-><BMW-E-SERIES-RENEW>
* Modify the EXCELLE(2013--)BCM,
  EXCELLE-GT(2013--)BCM,
  EXCELLE(2014) options in  <4-IMMOBILIZER>-><BUICK>: Remove the D-FLASH option
* Modify the CAS4-5M48H-R/W/UNLOCK,
  CAS4-1N35H-R/W/UNLOCK options  in <4-IMMOBILIZER>-><BMW>:
  Autoset the D-FLASH partition
  size as 32K while writing the D-FLASH data 

Condor XC-MINI, Miracle A6, X6... Reviews by Locksmith

This is a professional review on key cutting machines, including Xhorse Condor, Miracle A7, Viper machine, Ninja laser & x6 key cutter, by an experienced locksmith.

“

condor xc-mini is a good budget machine , more suited to the workshop than mobile due to size and weight. it has some bugs , some issues and some gaps , but the quick and easy update for lifetime plus wonderful function are the scoring points. this for what it costs, on the whole a decent machine for the money.

miracle A7 is a reliable machine , has a few bugs but reliable as a light use machine , ideal mobile on a van and space saving .

Viper is a heavy machine and can play up in cold , but is a great heavy duty machine that will give a lifetime of reliable use and receives lifetime updates and as Silca is normally up to date.

Ninja laser - excellent machine , nothing better for me on sx9 keys , laguna 3 , megane 3 , new clio cards using 1234Q5678H series and decoding and cutting clio 3 keys , fast reliable cutting that allows you to pick various styles of cut as well as adjust to half cuts etc , the software can take getting used to due to the functions available on it , adds cylinder keys to your services too , its a well built machine that is like silca updated for life free.

most will cut a tibbe key on a clamp , but none will in my view cut a perfect tibbe key , a stand alone option will always cut a better key and far quicker too .

I have all of the above machines , so have hands on and regular experience with each machine and use them all , i like them all over the next for certain functions and all do different jobs for me , viper will always be my baby as it was my first , but ninja laser is catching it up fast my only gripe is viper is 30 second boot time , ninja laser is 4 minutes to boot up , but these 2 are in a league of their own

condor xc-mini key machine is a far superior machine to the x6 key cutter, the x6 is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , i wouldn’t buy one having gone hands on with it , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .

it isn’t always 100% accurate , but the find biting function on condor is useful if you don’t have instacode to hand , and is a useful addition that makes the condor more useful.

Below is what i tested with Condor machine.

Do Toyota TOY43 all key lost, save you a lot of time

Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code

Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys

HU101 works fine, HU92 works fine.

HU66 OK, have to do two passes on each side to get the key to work, same with hu100.

Fix the problem that other key cutting machines cut domestic Honda key not accurately

But it is a pity that there is no solution for Renault emergency blade yet

”

Installation Guide for Newest VVDI 2 Commander Key Programmer

VVDI 2 is the update version of VVDI, with powerful function for VW/Audi/BMW/Porsche.
The essay is mainly about the installation of VVDI II key programmer.

What is new on VVDI 2 commander?
 newly add BMW Porsche model,
added plug-in function and reserved connectors,
support IMMO programming for part vehicles.



How to install VVDI 2?
It is easy to install VVDI II software. Just follow me.

STEPS:

Double click “VVDI2-Installer. exe” to install.

Choose the setup language.

Click “Next” to continue.

Choose a file location to go on.

Click “Install” to begin installation of VVDI2.

ATTENTION!
Click “Next” if you install VVDI software (any version) for the first time.
Else, click “Cancel”.

Click “Finish” for successfully installing the device driver.

Click “Close” for successful installation of VVDI 2 key programmer.

VVDI 2 software has been installed.

Original VVDI Prog Programmer User Manual

This is the user manual for original VVDI programmer by the Xhorse factory.

Download & Update
Free download vvdi pro 4.3.0 (NEWEST)
How to update vvdi prog

4.3.0 New info
New info about newest VVDI programmer 4.3.0


Car ECU wiring diagram
4.3.0 VVDI PROG Cars ECU Wiring Diagram
4.1.4 VVDI PROG Cars ECU Wiring Diagram
4.1.2 VVDI PROG Cars ECU Wiring Diagram
4.1.0 VVDI PROG Cars ECU Wiring Diagram

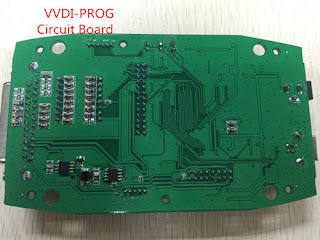

Printed circuit board (PCB) display

Other details
Tops reasons to get original VVDI Programmer
Main feature of VVDI Prog
Chips VVDI PROG supported
VVDI prog full package info

Source:
http://www.uobdii.com/wholesale/vvdi-prog-programmer.html

VVDI Prog 4.3.1 Free Download

This is all new info of vvdi prog programmer 4.3.1, including free download link, new info, etc.

free download
vvdi pro 4.3.1. exe
vvdi pro 4.3.1 full zip (include software, ecu wiring diagram, data, etc)



new info of v4.3.1 vvdi prog:
v4.3.1 (2016-01-27)
* This version DON't need update firmware
+ Add MC9S12GN16_UNSECURED,
MC9S12GNA16_UNSECURED,
MC9S12GN32_UNSECURED,
MC9S12GNA32_UNSECURED,
MC9S12G48_UNSECURED,
MC9S12GA48_UNSECURED,
MC9S12GN48_UNSECURED,
MC9S12G64_UNSECURED,
MC9S12GA64_UNSECURED,
MC9S12G96_UNSECURED,
MC9S12GA96_UNSECURED,
MC9S12G128_UNSECURED,
MC9S12GA128_UNSECURED,
MC9S12G192_UNSECURED,
MC9S12GA192_UNSECURED,
MC9S12G240_UNSECURED,
MC9S12GA240_UNSECURED options
Mask:(0N95B,0N51A,0N75C,1N75C,
0N48A,1N48A)
MC9S12HA32_UNSECURED,
MC9S12HA48_UNSECURED,
MC9S12HA64_UNSECURED,
MC9S12HY32_UNSECURED,
MC9S12HY48_UNSECURED,
MC9S12HY64_UNSECURED options
Mask:(0M34S)
MC9S12P32_UNSECURED,
MC9S12P64_UNSECURED,
MC9S12P96_UNSECURED,
MC9S12P128_UNSECURED options
Mask:(0M01N)
MC9S12XEA128_UNSECURED,
MC9S12XEG128_UNSECURED,
MC9S12XEA128_SECURED,
MC9S12XEG128_SECURED options
Mask:(1M53J,2M53J,0N36H,1N36H)
MC9S12XHY128_UNSECURED,
MC9S12XHY256_UNSECURED options
Mask:(0M23Y)
MC9S12XS64_UNSECURED,
MC9S12XS128_UNSECURED,
MC9S12XS256_UNSECURED options
Mask:(0M04M,1M04M,0M05M) in <2-MCU>-><MOTOROLA>
+ Add MC9S12XE_UNLOCK option in <2-MCU>-><MOTOROLA>
(Backup all data before use it)
+ Add ME20U2-XET256-BACKUP,
ME20U2-XET512-BACKUP,
MT22-XEP768-BACKUP,
MT60-XEP768-BACKUP options
in <3-ECU>-><DELPHI>
+ Add the 12V power adaptor status in information dialog

how to update vvdi programmer 4.3.1:
step 1 - connect the vvdi prog device with the usb cable for the computer
step 2 - click on "Start Firmware Upgrade" button to begin update
step 3 - wait for upgrade to complete

If you want to know more about Xhorse VVDI PROG Programmer

, please visit:

 http://www.uobdii.com/wholesale/vvdi-prog-programmer.html

How to update VVDI Prog Programmer V4.3.0

Xhorse vvdi prog 4.3.0 has been updated!! all useful tips for you all to get the newest vvdi programmer v4.3.0!
Free download vvdi pro 4.3.0
https://mega.nz/#!I18hnCxL!hHQCt3_tZCchhlbyCkxgEs1ogNVrWBSSLaKabAAoMvU
Files included:

How to update Xhorse VVDI-PROG super programmer:
1) Connect the device with the USB wire for the computer
2) Click on the following start online upgrade button to upgrade
3) Waiting for the upgrade to complete



4.3.0 VVDI PROG car ECU wiring diagram:
http://obd2-diag.blogspot.com/2016/01/vvdi-prog-430-cars-ecu-wiring_19.html 

what's new in vvdi prog v4.3.0 
* This version DON't need update firmware
+ Add MC9S12XHZ256_UNSECURED,
  MC9S12XHZ384_UNSECURED,
  MC9S12XHZ512_UNSECURED,
  MC9S12XHZ256_SECURED,
  MC9S12XHZ384_SECURED,
  MC9S12XHZ512_SECURED options in <4-IMMOBILIZER>-><MOTOROLA> Mask:(0M80F,1M80F)
+ Add [V850ES/Sx3]series:
D70F3333,  D70F3334,  D70F3335,  D70F3336, D70F3340,  D70F3341,  D70F3342,  D70F3343,  D70F3350,  D70F3351,  D70F3352,  D70F3353,  D70F3344,  D70F3345,  D70F3346,  D70F3347,  D70F3348,  D70F3354,  D70F3355,  D70F3356,  D70F3357, D70F3358,   D70F3364,  D70F3365,  D70F3366,  D70F3367,  D70F3368 options
  [V850ES/Fx3]series:
D70F3370A,  D70F3371,  D70F3372,  D70F3373, D70F3374,    D70F3375,    D70F3376A,  D70F3377A,  D70F3378,  D70F3379,  D70F3380,  D70F3381,  D70F3382,  D70F3383,  D70F3384,  D70F3385 options
  [V850ES/Hx2]series:
D70F3700,  D70F3701,  D70F3702,  D70F3703,  D70F3704,  D70F3706,  D70F3707,  D70F3709,  D70F3710,  D70F3711,  D70F3712 options
  [V850E2/Fx4-G]series:
  D70F4177,  D70F4178,  D70F4179,  D70F4180 options in <2-MCU>-><RENESAS>
+ Add EIZ-W220(ST12)   in <4-IMMOBILIZER>-><BENZ>
+ Add ORIGINAL-315M-IN-CIRCUIT,
  ORIGINAL-315M-CHIP,
  ORIGINAL-868M-IN-CIRCUIT,Auto Repair
  ORIGINAL-868M-CHIP options in <6-REMOTE>-><BMW-E-SERIES-RENEW>
* Modify the EXCELLE(2013--)BCM,
  EXCELLE-GT(2013--)BCM,
  EXCELLE(2014) options in  <4-IMMOBILIZER>-><BUICK>: Remove the D-FLASH option
* Modify the CAS4-5M48H-R/W/UNLOCK,
  CAS4-1N35H-R/W/UNLOCK options  in <4-IMMOBILIZER>-><BMW>:
  Autoset the D-FLASH partition
  size as 32K while writing the D-FLASH data
If you want to know more details,please visit the website:
http://www.uobdii.com/wholesale/vvdi-prog-programmer.html

V2.0.5 VVDI MB BGA TOOL Free Download

Original Xhorse VVDI Benz VVDI MB Tool 2.0.5 key programmer software has been released at UOBD2 (2016-01-07) . Some more info about 2.0.5 vvdi mb key programmer is offered here.

Free Download VVDI MB BGA TOOL V2.0.5.rar


https://mega.nz/#!H4RESJgA!ikXK2Uiq5JLSB_9yvUOAR3h592UNDwJV2oFTRY2_c5Y

What’s new in VVDI MB BGA TOOL V2.0.5
Require firmware V2.0.5

1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times

3. Password calculation with working key support: add working key test before data acquisition
4. Add EIS status test, working key test function
5. Fix bug for OBD read W203, W639, W463(K) EIS
6.Autodetect W212 EIS with ELV
7.Fix bug for read v51 key password via NEC adapter
8.Add IR repair key function
9. Bugfix
Successful tests concerning vvdi mb tool:
calculate 221 EIS password..ok
Read Renew EIS on Benz W172 204 207…ok
W207 all key lost…ok
Change EIS on Mercedes W207…ok
Add bga key A169, W209, W211…ok
Read password on W215, W220…ok
write EIS and ELV on A166, W197,W212, W218, A246…ok

http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

V1.1.2 VVDI 2 Key Programmer Free Download


VVDI 2 key programmer transponder has been updated to version 1.1.2. Here is all about the newest vvdi 2 v1.1.2.

Free download vvdi 2 v1.1.2:

https://mega.nz/#!sktk0CTD!yLQWrvwjc-wyzoyT4LZjGjYd_MKO-VJh5qeG9b6ABe0




New info of vvdi 2 version 1.1.2:

*** Require firmware V2.1.2
**********************
===== Note =====
Xhorse will continue provide more useful and more conventient tool in 2016!

===== VAG V1.1.2 =====
1. Fixbug for prepare dealer key in audi RB4 crypto type
2. Fixbug for change KM in A6 (CAN protocol)
3. Immprove autodetect 4th immobilizer, support more cars
4. Bugfix

===== BMW V1.1.2 =====
1. Fixbug for change KM in CAS2
2. Fixbug for read key info from CAS2
3. Bugfix

===== Porsche V1.0.4 =====
1. Bugfix

===== Transponder Programmer V1.1.2 =====
1. Other Key Tool: make dealer key with 7 bytes CS / Find 7th byte CS : add no manufacture type
2. Immobilizer Data Tool add the following car support:
Subaru XV 2012
Sabura Forester 1998
Volvo XC70 2008
Volvo V70 2008
Dodge Ram 2008 uPD70F
Dodge Charger 2008 uPD70F
Dodge Sprinter 2006
Jeep Grand Cherokee 2008 uPD70F
Jeep Laredo 2008 uPD70
Saic MG3
Kia Cee'd 2012 STM8
Kia Soul 2008
Chevrolet Silverado 2011
Chevrolet Camaro 2015
Chevrolet Aveo 2012
Chevrolet Captiva 2011
Chevrolet Matiz 2006
Chevrolet Camaro 2015
Nissan Teana 2012
Mitsubishi Montero 2008
Mitsubishi Montero 2000
Mitsubishi Space Wagon 1999
Mitsubishi Pajero 2000
Mitsubishi Pajero Sport 2000
Mitsubishi Fuso Canter 2009
Mitsubishi Mirage 2010
Tata Safari 1999
Iveco Stralis 2008
Isuzu KB250D
Toyota smart systems certification ECU
Toyota Previa Immobox 2003
Toyota Yaris 2004
Mazda Tribute 2008
Kawasaki Denso 21175
Kawasaki Denso 21175 0811
VAZ Priora 2013
Piaggio Vespa LX125
Fiat Ducato 2012
Fiat Burstner Viseo 2011
Peugeot Boxer 2012
Pergeot Manager 2013
Renault Latitude 2010
Renault Safrane 2010
Renault Samsung SM5 2010
VW Golf 5 Viesteon 2008
VW Beetle 2008
Ford focus 2012
Ford Escapte 2012



VVDI 2 customer feedback:

I successfully added a key bcm2 on a 2013 audi a5.
2007 Audi A4 B7 RB8 crypto - mileage correction ok
Audi BCM2 add spare key by obd worked fine, and I did one on a 2013 A5 and it worked flawlessly.
A6/Q7 EZS Kessy: Added a dealer key (remote sourced from the dealer) without issues. Seemed to read everything properly but I had a working key to begin with.

Audi A6: Testet with A6 read kessy working, learned new key
Skoda Octavia 2006: got CS & PIN , programmed key fine, but not remote programming.
VW passat. B5: Pulled PIN, programmed key, corrected miles.
VW Passat B6 2009: Pulled PIN but couldn't get 6 bytes CS, needed comfort dump.
VW Transporter T5 2006 : Pulled PIN Programmed key, no remote programming.
Audi A4 2006 : mileage correction success .
Audi A6 2003: Mileage correction fail. car not start. remove battery terminal. car start.
