Will Xhorse VVDI2 do BMW CAS4+ key?

OriginalXhorse VVDI2 commander interface adds BMW key functions. But still some people doubt the capacity of making CAS4+ key. Because very few tool can mess with CAS4 successfully. Newer BMW 2014 CAS4+ must have 1N35H or 1L15Y inside which is out of reach for this tool.

So will VVDI2 add BMW CAS4+ 2014 key or program CAS4+ all key lost?

Yes. Practice is the criterion for testing truth.

VVDI2=

SV30 Xhorse VVDI VAG Vehicle Diagnostic Interface

+SK97 Xhorse BMW Multi Tool

+SK108 CAS PLUS for BMW EWS

+SK97-B CAS4 Adapter for BMW Multi Tool

+SO146 VVDI 5th IMMO Update Tool

Xhorse BMW Multi Tool is the best key programmer for BMW CAS1, CAS2, CAS3, CAS3+, CAS4 (with CAS4 adapter). VVDI II has completely inherited BMW Multi Tool’s advantages and developed to program CAS4+ all key lost.

uobdii.com engineer have tested and achieved CAS4 key, please see the video guides below:

VVDI2& VVDI Prog add BMW CAS4+ 2014 key

https://www.youtube.com/watch?v=6i4M7Q_hhmg

VVDI2 & VVDI Prog program CAS4+ all key lost

https://www.youtube.com/watch?v=MkSXxtor7DY

Step by step to make key by Xhorse VVDI MB BGA tool for W204 all keys lost

Someone is wondering with what is the procedure that we need to do when we have all keys lost for a w204 and we got a new ezs from dealer or other?

How to adapt it to the car and also how to edit the pass because it's at virgin state (factory state)?

Device will automatically generate keys and also make a password ?

Currently version W204 all key lost steps: (user should buy a new EIS first)

1. Read EIS data via obd,then Save EIS data

2. adapt ESL:Read ESL data->Get Erase Password->Renew ESL

3. Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data

4. Personalize W204 ESL

5. Load EIS data(with Key Password)->Prepare Key File

6. Input new Key to device IR reader->Load Key file->write

7. Insert new Key to EIS->EIS will learn the new key->key learn success

If you want to konw more about VVDI MB BGA tool,pls visit:
 http://www.uobdii.com/wholesale/xhorse-vvdi-mb-bga-tool.html

Xhorse VVDI-PROG read Maserati 1K79X0 EEPROM

Xhorse VVDI-PROGprogrammer is capable of reading multi vehicle’s ECU, MCU and EEPROM, including famous brand luxury cars, Ferrari, Maserati and Lamborghini etc. Here is the example on reading Maserati1K79X 0 MCU with VVDI pro.

Maserati 1K79X0ECU and MCU MC9S12DT256

Open VVDI-PROG software

Select Type: 2-MCU

Select Brand: MOTOROLA

Select Chip type: MC9S12DT256

And will prompt Encryption address and program procedure:

1. Read and backup EEPROM, P-Flash data

2. Erase chip data

3. Write new data

Press “Connect diagram” to view wiring diagram

Well solder and connect cables with VVDI pro and Maserati ECU follow the diagram

Then click “New” tab

Click “Read”

Device initializing

Read EEPROM data completed

Save data

Close VVDI Prog software

(Solution) Xhorse MVCI Toyota Techstream Unable to Connect to VIM

Xhorse MVCI users got error: unable to Connect to VIM , during connect techstream via mvci to Toyota car models. How to fix?

When use Xhorse MVCI got error: unable to Connect to VIM , during connect techstream via mvci to Toyota car models as following picture shows:

UOBD2 engineer answer: It’s not Xhorse product quality problem, but you need a simple reset, set the area to Europe.

Step-by-step to do as follows:

1.      open Techsream software, in the toolbar click "Setup-Techstream conficuration"

2.      Area Selection: select "Europe" under the drop list among Japan, North America, Europe and other.

3.      Default Language Selection

4.      Techstream Conficuration: no need input nothing, click OK.

Note: if the above solution not work, try these:

1)     In the Techstream toolbar, click " Help- DLC3 Cable Check " to check your conectivity problems with car.

2)     Try to install on another desktop, better with windows XP.

MVCI Toyota Techstream video

https://www.youtube.com/watch?v=KXZtI7x0kmg

How to use Xhorse CONDOR XC-MINI Master to cut key for Citroen VA2T

This is a step-by-step instruction on Citroen VA2T key cutting by iKeycutter CONDOR XC-MINI key cutting machine.

Device to use:

XhorseiKeycutter CONDOR XC-MINI key cutting machine;

Key;

Enter the key profile number.

Click “Cut by Bitting” to begin key cutting.

Select car maker Citroen, and the key VA2T. Then click “Confirm”.

Reversely input AFACCE.

Put the key correctly on the Condor key machine.

Click “Cut” for key cutting.

Cut the opposite side of the key.

Open the Citroen door with the new key.

Key cutting success.

Read more about CONDOR XC-MINI Master, please go to

http://www.uobdii.com/wholesale/ikeycutter-condor-xc-007-master-series-key-cutting-machine.html

CONDOR XC-MINI Master Key Cutting Machine Introduction by Pics

Original Xhorse iKeycutter CONDORXC-MINI Master is most powerful and competitive auto key cutting machine supported multi-languages and online-updated.

Condor XC-Mini Master User Manual：

http://www.uobdii.com/upload/pro/ikeycutter-condor-xc-mini-user-manual.pdf

Device from

http://www.uobdii.com/wholesale/ikeycutter-condor-xc-mini.html

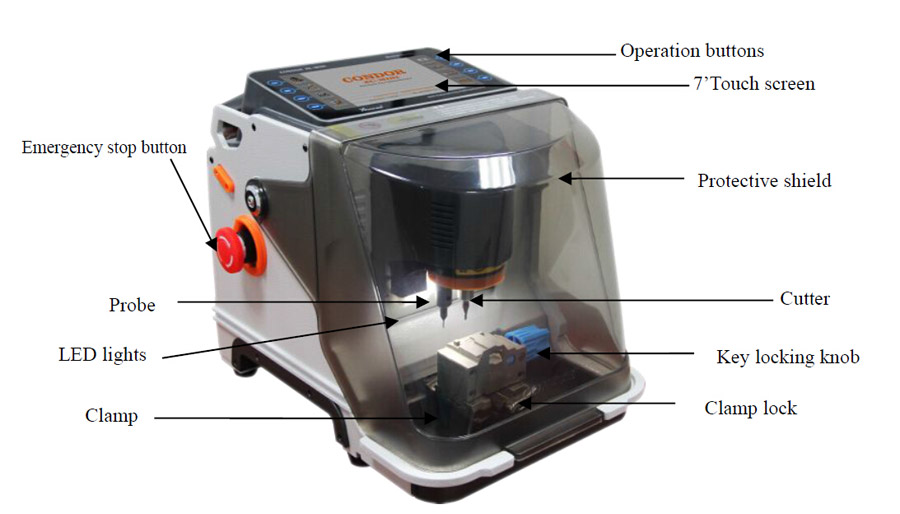

Overview:

From the web:

From the reality:

CONDORXC-MINI Master Features:
1. Built-in Database, can easily find key information
3. 7'' Capacitive Touch Screen
4. 3-Axis Precision Ball Screw Transmission
5. Cross Rail
6. All Aluminum Machine Body
7. Single machine with both Tracer/Cutter
8. Standardly include three clamps M1/M2/M3
10. Support Sided/Track/Dimple/Tibbe keys
11. Some Dimple/Tibbe keys need optional clamps

Detailed pictures:

Learn more about Multi-language iKeycutter CONDOR XC-MINI Master Series Automatic Key Cutting Machine
